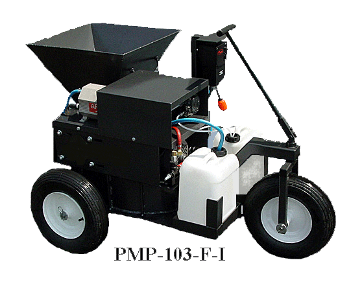

PMP-103-F-I™: 3 Wheel High Mobility Cart Pump/ Spray System W/ Gun/ Nozzle flush-out and Precision Metered Injection System
Specifications:
Type: peristaltic
Pump size: 1.5”
Transfer line: 1”-1.25”
(spraying/ pumping) to 1.5” (pumping/ spraying)
Weight: 285 lbs.
Power: 115vac 15-20amp 50-60Htz
(standard, other power options available)
Air: 11cfm @ 80psi (air is
only used if spraying material)
*Head Horiz.: 50ft
*Head Vert.: 15ft
Pumping volume: Variable
speed min. 0-80 lbs per min. /0-4800 lbs per hr.
0-2.8 cu yds per hr
Nozzle flush: twin diaphragm pump
Injection, metered: high accuracy metered injection at nozzle or in line
Multiple material application system, with lot's of available options.
Ship's stock plug and play ready with 25' of 1.25" transfer line and premix/ spray nozzle.
GFRC, GFRG, PVRC, PVA, Fire Proofing, Stucco, Grouting and much more
* Heads vary on transfer hose size and materials being used
